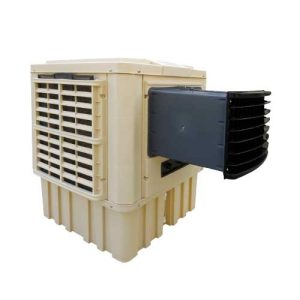

BS-18HYP Multifunctional Evaporative Air Cooler
Multifunctional Evaporative Air Cooler BS-18HYP has been developed with the aim to provide a cool and comfortable environment to the people (living in the UAE i.e. Dubai, Abu Dhabi, Sharjah, Ajman, Fujairah etc.) in the most economical and energy-efficient manner. In Multifunctional Evaporative Air Cooler, the hot and humid air passes through the wet replaceable mediums from which the heat is absorbed from the air and it provides fresh and cool air. Also, Multifunctional Evaporative Air Cooler has a sleek design, which makes it presentable in front of the guests and is available in multiple colour variants.
- Description
- specifications
Description
Multifunctional Evaporative Air Cooler in Dubai or UAE and advanced Outdoor Cooling System. Best for Hotels, Restaurants, Outdoor dining areas, Swimming Pools, Horse Stable, and factories. It is designed for hot places like Dubai, Abu Dhabi, or the entire UAE or Gulf countries. It is a choice of a different type of machine based on different surroundings.
Multifunctional Evaporative Air Cooler matches different duct and air outlet mice based on different fan machines. It does different installations based on different surroundings. Given instruction about Air Cooler BS-18HYP is just for reference. For detailed information, please contact the provider or manufacturer and also visit our Facebook Page. Our evaporative cooling systems have helped our customers maintain cost reductions and operational returns throughout in many industries. Becoming up to 80% more economical than conventional air conditioning systems.
More about Evaporative Air Cooler
Evaporative air cooler is highly competitive both in capital outlay and purchase and in running and maintenance costs. Especially if compared to an equivalent air conditioning installation using a compressor. In this way, the running costs of evaporative air handling units are similar to those of a fan. Their installation cost is low since they only need a water source and electrical power supply. That is too without any complementary installation. Their maintenance is highly economical and since they have few moving parts the probability of failure occurring is lower. Another feature is the ease of maintenance of the filters and water distributors. All the advantages in energy efficiency that characterize eco-air-cooling systems translate to significant financial savings and the profit and loss accounts of firms using the system.
How does it work?
An evaporative cooling system works with basic evaporation. Its programs efficiently lower the temperature of the air in your home. In general, the machine will entail a fan, a thick pad, a water reservoir, and some additional controls for fine-tuning the outcomes. The fan lures dry, hot air into the machine and across the cooler pads. These thick pads captivate water from the reservoir and have many layers to upsurge the surface area. As the hot air crosses the pad, the water molecules on the surface evaporate, which roots the air temperature inside the cooler to drop. Often by as much as 20 degrees. The fan then blows that cold air into your room, where you can enjoy the chill on a hot day.
Model | BS-18HYP – Multifunctional Evaporative Air Cooler |
Max airflow | 18000m3/h |
Voltage | 220v |
Electric current | 5.2A |
Frequency | 50/60Hz |
Input power | 1.1KW |
Blower type | Centrifugal-flow type |
Water consumption | 35L/H |
Water tank capacity | 72L |
Dimension of air outlet | 695x490mm |
Overall size | 1100x1100x1960mm |
Application area | 140-150m2 |
Noise | ≤68dB |
Air out way | Blow-up |
